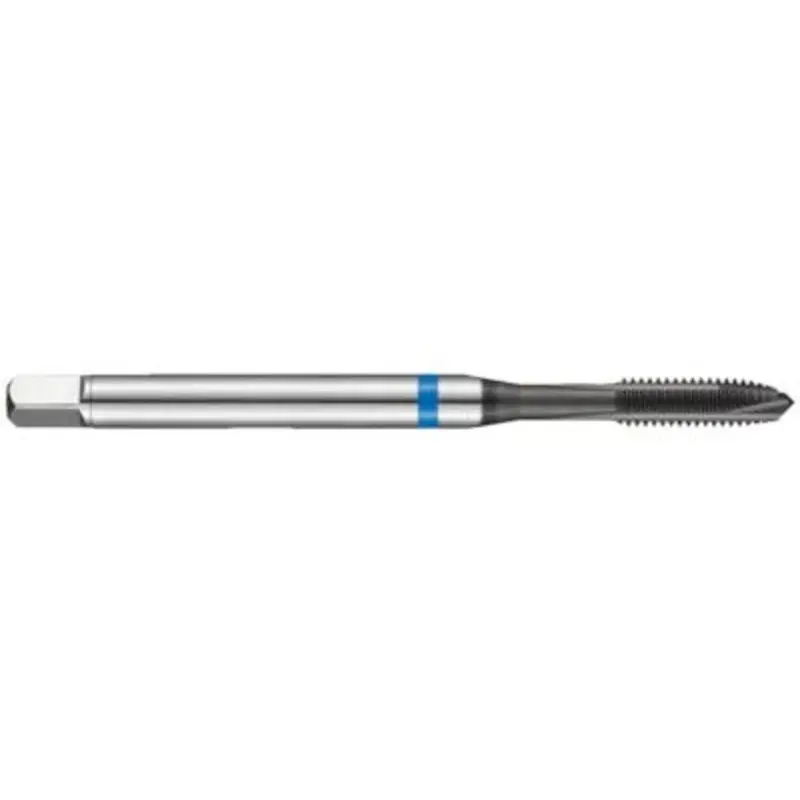

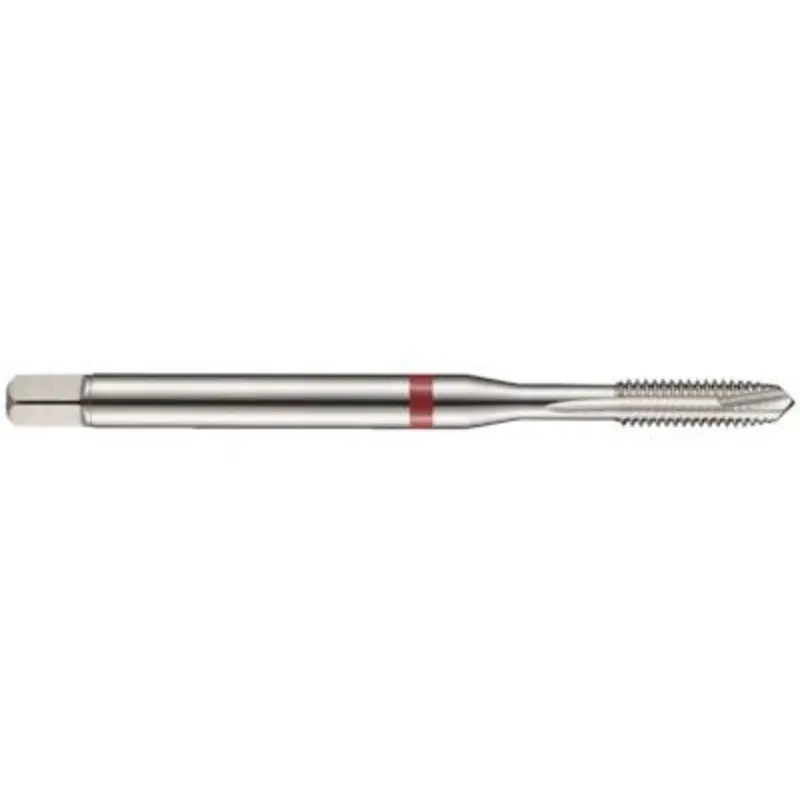

Fanar #10 – 32 HSS-E Stainless Steel Spiral Point Machine Tap

800X machine tap is a developed version of the well-known 800 tap. Its construction is completely modified and makes possible machining of stainless steel. Innovative production technologies guarantee increased tool life and machining efficiency.

Brand :Fanar

Manufacturer Part Number :C2-113X01-4210

Features & Benefits : TiAlN + TiN coating
B / 4-5P chamfer
For through hole
Meets DIN 371 standards
2B tolerance
American unified fine thread UNF, ANSI B-1.1 standards

Thread Size x Pitch :#10 – 32

Overall Length (mm) :70

Flute Type :Spiral Point

Type :Machine Tap

Square Size (mm) :4.9

Number of Flutes :3

Material :HSS-E

Tap Drill Size (mm) :4.1

Thread Length (mm) :14
